特點：
標準型號，低成本，數字輪廓檢測器，寬范圍輪廓測量。
技術規范：
| Model No. | CBP1000 | CBP2000 | |
| Column | Range | 320 ~ 620 mm | |
| Drive unit | Range | 100 ~ 200 mm | |
| Indicating accuracy[1] | ± (1+2L/100) μm | ± (0.8+2L/100) μm | |
| Straightness[2] | ≤0.8 μm / 100 mm | ≤0.5 μm / 100 mm | |
| Detector | Range | 0 ~ ± 20 mm | |
| Indicating accuracy[3] | ± (1.3+6 |H| /100) μm | ± (0.6+5 |H| /100) μm | |
| Resolution | 0.01 ~ 0.2 μm | ||
| Accuracy | Arc[4] | ≤ ± (2+ R/8) μm | ≤ ± (1.5+ R/12) μm |
| Angle[5] | ≤ ± 2' | ≤ ± 1' | |
| Drive Speed | X axis (horizontal direction) | 0.1 ~ 10 mm/s | 0.05 ~ 15 mm/s |
| Z axis (column) | 0.5 ~ 10 mm/s | 0.2 ~ 15 mm/s | |
| Contour Measurement Function | Workpiece surface line feature, point feature, distance between points, distance between lines. Position accuracy of each features,including distance,parallelism,verticality,angle,groove depth,groove width,radius,anslysis for straight line accuracy,convexity and contour. | ||
[1] ：（L：測量長度）
[2] ：（λc為2.5mm，光學平面采樣速度≤0.3mm/s）
[3] ：（H：測量高度）
[4] ：（R：標準球，2mm＜R＜10mm，采樣弧角120°。）
[5] ：（60°和90°角塊規，取樣角邊長為5mm。）

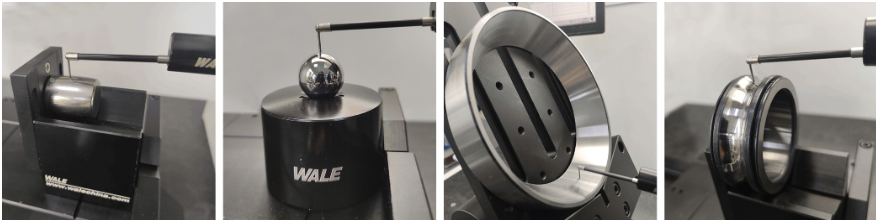

應用程序：
