PRODUCT
Microcomputer controlled electronic universal testing machine

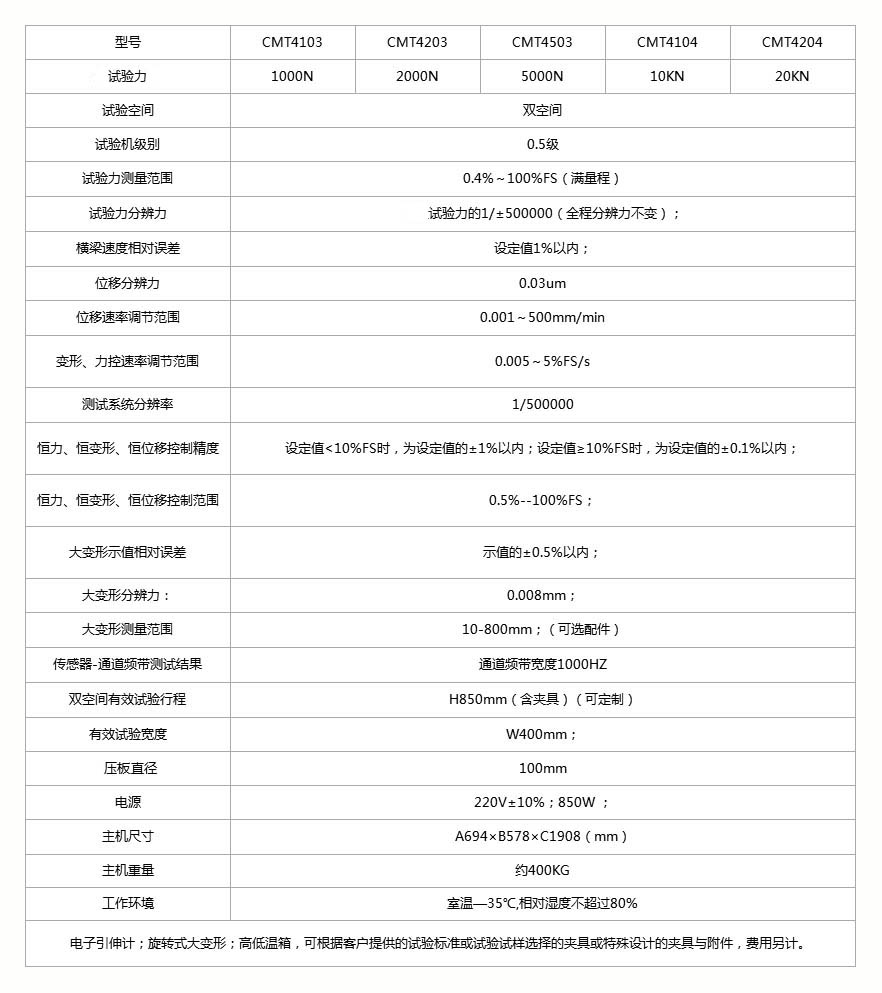

Product model: CMT4103, CMT4203, CMT4503, CMT4104, CMT4204
The main function of the equipment: This equipment is suitable for the testing of the mechanical properties of metal materials, non-metallic materials and composite materials and the analysis and research of process performance. With the corresponding tooling, it can be used for tensile, compression, bending, shearing, tearing, peeling, bursting, fatigue and other tests. It can automatically obtain the maximum test force value, breaking force value, elongation, tensile strength, yield strength, compressive strength, elastic modulus, shear strength, tear strength, peel strength and other parameters. At the same time, it can also achieve the test of the requirements of constant elongation stress, constant stress elongation and load retention.
The machine is widely used in the inspection and analysis of materials in construction and building materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, automobile manufacturing, powder metallurgy, bolts and other industries. Ideal test equipment for arbitration and other departments.
The main machine adopts a (single) double space structure, and the test space is up and down (down and down), which is mainly composed of a base and a rack. The base is made of cast iron, the frame is a portal structure, mainly composed of a bottom plate, upper, middle and lower beams and connecting light bars, etc. The beams are made of steel. A high-strength light bar is used to fix the upper beam and the work surface to form a high-rigidity structural frame.
Experiments can be conducted according to: GB, ASTM, DIN, ISO, JIS, BS and other standards.
The equipment meets the test standards:
Testing machine manufacturing standard: GB / T 16491-2008 electronic universal testing machine;
Meet the test method standard: GB / T1040-2006 "Determination of plastic tensile properties" GB / T1041-2008 "Determination of plastic compression properties" GB / T9341-2008 "Determination of plastic bending properties" GB / T 228-2010 "Metal Room temperature tensile test method of materials "GB / T 7314-2007" Room temperature compression test method of metal materials "(users can provide relevant test standards, no more than 5)
